Hiwin AGW Linear Guideways
|
Technical Specifications
|
|
Click here to return to the Hiwin Tech Info Index Page

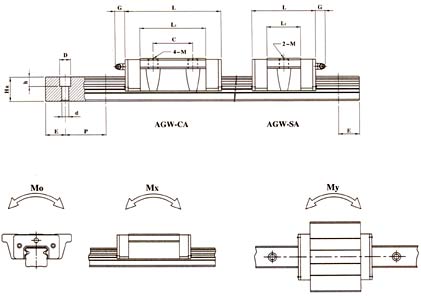

| Model
No. |
Dimensions
of Assembly (mm) |
Dimensions
of Block (mm) |
Dimensions
of Rail (mm) |
| H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
G |
M |
T |
H2 |
WR |
HR |
D |
h |
d |
P |
E |
| AGW
15SA |
24 |
5 |
18.5 |
52 |
41 |
5.5 |
- |
22.8 |
41 |
5.7 |
M5 |
7 |
5.5 |
15 |
13.5 |
6 |
4.5 |
3.5 |
60 |
20 |
| >> |
AGW15SA (alt. AGW-15SA) is a "short" body version flange bearing with two threaded mounting holes.
AGW15SB and AGW15SC are other common variations of the AGW15 bearings and often interchangeable.
|
| AGW
15CA |
24 |
5 |
18.5 |
52 |
41 |
5.5 |
26 |
38.7 |
56.9 |
5.7 |
M5 |
7 |
5.5 |
15 |
13.5 |
6 |
4.5 |
3.5 |
60 |
20 |
| >> |
AGW15CA (alt. AGW-15CA) is the standard body version flange bearing with four threaded mounting holes.
AGW15CB and AGW15CC are other common variations of the AGW15 bearings and often interchangeable.
|
| AGW
20SA |
28 |
6 |
19.5 |
59 |
49 |
5 |
- |
26.2 |
48 |
12 |
M6 |
9 |
6 |
20 |
15.5 |
9.5 |
8.5 |
6 |
60 |
20 |
| >> |
AGW20SA (alt. AGW-20SA) is a "short" body version flange bearing with two threaded mounting holes.
AGW20SB and AGW20SC are other common variations of the AGW20 bearings and often interchangeable.
|
| AGW
20CA |
28 |
6 |
19.5 |
59 |
49 |
5 |
32 |
44.1 |
65.9 |
12 |
M6 |
9 |
6 |
20 |
15.5 |
9.5 |
8.5 |
6 |
60 |
20 |
| >> |
AGW20CA (alt. AGW-20CA) is the standard body version flange bearing with four threaded mounting holes.
AGW20CB and AGW20CC are other common variations of the AGW20 bearings and often interchangeable.
|
| AGW
25SA |
33 |
7 |
25 |
73 |
60 |
6.5 |
- |
34.5 |
58.7 |
12 |
M8 |
10 |
7 |
23 |
18.5 |
11 |
9 |
7 |
60 |
20 |
| >> |
AGW25SA (alt. AGW-25SA) is a "short" body version flange bearing with two threaded mounting holes.
AGW25SB and AGW25SC are other common variations of the AGW25 bearings and often interchangeable.
|
| AGW
25CA |
33 |
7 |
25 |
73 |
60 |
6.5 |
35 |
58.3 |
82.5 |
12 |
M8 |
10 |
7 |
23 |
18.5 |
11 |
9 |
7 |
60 |
20 |
| >> |
AGW25CA (alt. AGW-25CA) is the standard body version flange bearing with four threaded mounting holes.
AGW25CB and AGW25CC are other common variations of the AGW25 bearings and often interchangeable.
|
| AGW
30SA |
42 |
10 |
31 |
90 |
72 |
9 |
- |
36.6 |
66.4 |
12 |
M10 |
10 |
8 |
28 |
24 |
11 |
9 |
7 |
80 |
20 |
| >> |
AGW30SA (alt. AGW-30SA) is a "short" body version flange bearing with two threaded mounting holes.
AGW30SB and AGW30SC are other common variations of the AGW30 bearings and often interchangeable.
|
| AGW
30CA |
42 |
10 |
31 |
90 |
72 |
9 |
40 |
65.2 |
95 |
12 |
M10 |
10 |
8 |
28 |
24 |
11 |
9 |
7 |
80 |
20 |
| >> |
AGW30CA (alt. AGW-30CA) is the standard body version flange bearing with four threaded mounting holes.
AGW30CB and AGW30CC are other common variations of the AGW30 bearings and often interchangeable.
|
| AGW
35SA |
48 |
10 |
33 |
100 |
82 |
9 |
- |
46.9 |
79.9 |
12 |
M10 |
13 |
10 |
34 |
27.5 |
14 |
12 |
9 |
80 |
20 |
| >> |
AGW35SA (alt. AGW-35SA) is a "short" body version flange bearing with two threaded mounting holes.
AGW35SB and AGW35SC are other common variations of the AGW35 bearings and often interchangeable.
|
| AGW
35CA |
48 |
10 |
33 |
100 |
82 |
9 |
50 |
79.1 |
112.1 |
12 |
M10 |
13 |
10 |
34 |
27.5 |
14 |
12 |
9 |
80 |
20 |
| >> |
AGW35CA (alt. AGW-35CA) is the standard body version flange bearing with four threaded mounting holes.
AGW35CB and AGW35CC are other common variations of the AGW35 bearings and often interchangeable.
|
| AGW
45CA |
60 |
13.5 |
37.5 |
120 |
100 |
10 |
60 |
93.4 |
130.8 |
13.5 |
M12 |
15 |
13 |
45 |
34 |
17.5 |
14 |
11 |
105 |
22.5 |
| >> |
AGW45CA (alt. AGW-45CA) is the standard body version flange bearing with four threaded mounting holes.
AGW45CB and AGW45CC are other common variations of the AGW45 bearings and often interchangeable.
|
| Model
No. |
Mounting
Bolt for Rail (mm) |
Basic
Dynamic Load Rating C (kgf) |
Basic
Static Load Rating Co (kgf) |
Static
Rated Moment |
Weight |
Mo
(kgf-m) |
Mx
(kgf-m) |
My
(kgf-m) |
Block
(kg) |
Rail
(kg/m) |
| AGW
15SA |
M3
X 16 |
440 |
590 |
4.8 |
2.3 |
2.3 |
0.15 |
1.43 |
| AGW
15CA |
M3
X 16 |
640 |
1,010 |
8.3 |
6.3 |
6.3 |
0.23 |
1.43 |
| AGW
20SA |
M5
X 16 |
650 |
920 |
10.1 |
4.5 |
4.5 |
0.24 |
2.16 |
| AGW
20CA |
M5
X 16 |
970 |
1,450 |
15.9 |
10.4 |
10.4 |
0.36 |
2.16 |
| AGW
25SA |
M6
X 20 |
1,080 |
1,330 |
16.7 |
7.8 |
7.8 |
0.44 |
2.95 |
| AGW
25CA |
M6
X 20 |
1,550 |
2,290 |
28.7 |
21.1 |
21.1 |
0.68 |
2.95 |
| AGW
30SA |
M6
X 25 |
1,550 |
2,030 |
30.8 |
14.0 |
14.0 |
0.72 |
4.76 |
| AGW
30CA |
M6
X 25 |
2,470 |
3,390 |
51.3 |
35.5 |
35.5 |
1.16 |
4.76 |
| AGW
35SA |
M8
X 30 |
2,310 |
3,000 |
55.1 |
26.3 |
26.3 |
1.14 |
6.59 |
| AGW
35CA |
M8
X 30 |
3,460 |
4,720 |
86.5 |
60.5 |
60.5 |
1.76 |
6.59 |
| AGW
45CA |
M10
X 35 |
4,980 |
7,060 |
169.5 |
110.4 |
110.4 |
2.99 |
10.79 |
|
