Home » Motion Control » NSK Precision Ground & Rolled Ballscrews » NSK Ball Screws: 6mm ⌀ thru 15mm ⌀

Product ID: W1505WF-A04062

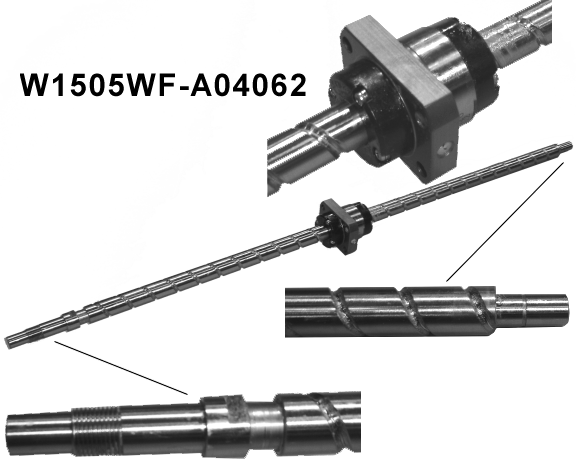

NSK 15mm GROUND screw, 20mm lead
In Stock: 4
NSK 15mm GROUND screw, 20mm lead

Manufacturer part number:  W1505WF-A04062

  • 15mm diameter
  • 20mm lead
  • 620mm approx. overall length
  • A end machining: 12mm x 10mm, 10mm x 15mm
  • B end machining: 10mm x 20mm
  • Precision ground, probably C5...but not marked
  • Estimated 470mm of nut travel.
  • Note that any mottling, discoloration or other aberrations in pictures are GREASE applied to screw for shipping/storage.  NSK packs all of its products very carefully, and we removed this screw from factory packaging to photograph it.  It was wiped down a bit, but no attempt was made to completely clean it.  These NSK screws are factory new, factory perfect and absolutely BEAUTIFUL.

List Price: $870.00
Price: $217.50
